| Posted on 2008-02-16 07:57:11 PM |
Link | Quote |
|
I decided to use Exanimation, but I have no idea how to use it. I was following the tutorial in the Documents section, but it isn't helping.
If anyone can explain it, it would help alot.
|
|
| Posted on 2008-02-16 10:45:04 PM |
Link | Quote |
|
Ok...
There are four types of ExAnimation: Normal, ON-OFF, POW/Silver POW, and Palette. This type determines how the ExAnimation will work. This can be selected from the drop-down box.
Now, you need the graphics you want to use. If you want to use the original graphics for an ExAnimation, then you don't need to do this step. However, if you want your own, then: insert it as an ExGFX file, go to Super GFX Bypass, check the box, and in the bottom drop-down box, select the ExGFX file the graphics are in.

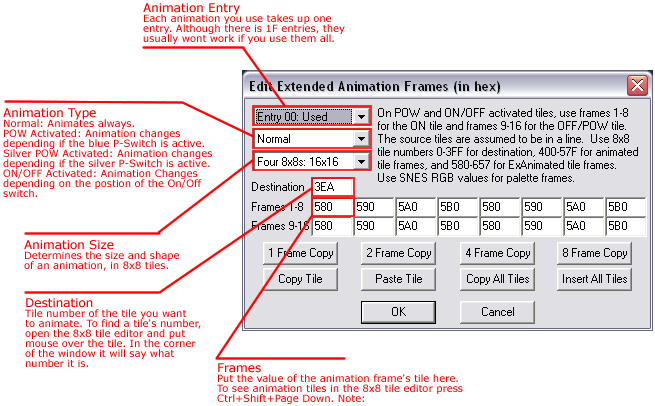

Now, click on the button with the SMB3 brick. The top drop-down box determines which ExAnimation slot you want to use...you can select any of them. Then, select the type of ExAnimation. LM has built-in instructions for how each works. Now, select the destination. This is the graphic tile slot where LM will put your animation for use, and can be from 0-300.
Now, you need to select the tiles that Lunar Magic will paste into the desination. Each option here is self-explanatory.
Now, you need to define the tiles it uses. Open up the 8x8 tile editor and press Ctrl+Shift+Page-down. Now, scroll down below the normal viewable tiles, so that you're viewing the tiles from 400-5FF.
For each frame, input the tile number that your graphics tile is (in the 400-5FF range). If you're using more than one tile to paste in the destination, then the tiles it uses for the animations will ALWAYS BE IN A LINE, starting at the tile number you put in and going to the right.
Click on OK, and then scroll up in the 8x8 tile editor to the destination tile. You should see your animation going and going.
|
|
| Posted on 2008-02-16 10:56:47 PM |
Link | Quote |
|
That should explain the basics. Tell me if you have any questions.
Edit: Beaten. D:
|
| Last edited on 2008-02-16 10:57:14 PM by Boingboingsplat. |
|
|
